Guangdong Y.K.R New Energy Co., Ltd. is an Air-Source Heat Pump manufacturer specializing in R&D, manufacturing, and sales of all types of heat pump products for Industrial, Commercial, and Residential applications.

Commodity name： Commercial hot water

Category：

Commercial Sanitary Hot Water Heat Pump

You can send us an email：doris@ykr-e.com

Inquire Now

Product Details

Since 2008,Y.K.R keeps focus on heat pumps development until now owning 5 large-scale heat pump production lines spread across 20,000m2 workshop, with an annually production capacity more than 2800 sets. Our company currently employs 150+ seasoned production workers, 18+ senior technical engineers, and we obtained 80+ product patents.

As our slogan states , " For green energy and a comfortable life ,"Y.K.R has been focusing on continuous technological innovation to improve the quality of products and services and is committed to providing customers with high-quality air source products and the best green energy solutions.

None

File Download

Name

Time

Size

Get A Free Quote

We welcome you for any inquiries,tell us about your project to receive a no-obligation price quote

Name

国家

手机

+86

+86 CN

E-mail

Message

Submit Message

Hotline

+86-757-81090095

E-mail

doris@ykr-e.com

Address

No. 16-1, Chaoyang Road, Nanhai National Ecological Industrial Demonstration Park, Danzao Town, Nanhai District, Foshan City, Guangdong Province, China.

PowerBy:300.cn Privacy SEO

business license

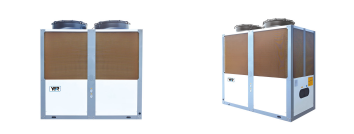

Y.K.R Ultralow Temperature Hot Water Heat Pumps
Model	Working Condition	YK-030/DRS	YK-050/DRS	YK-070/DRS	YK-100/DRS	YK-120/DRS	YK-150/DRS	YK-200/DRS	YK-250/DRS	YK-300/DRS	YK-500/DRS	YK-600/DRS

Power Supply	/	220V/50HZ	380V/3N-50HZ	380V/3N-50HZ	380V/3N-50HZ	380V/3N-50HZ	380V/3N-50HZ	380V/3N-50HZ	380V/3N-50HZ	380V/3N-50HZ	380V/3N-50HZ	380V/3N-50HZ
Protection Level	/	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
(20°C) Heating Capacity[kW]	Heating condition A 20/15°C W15/55°C	10.5	18.9	25.5	40	45	55	80	90	110	180	220
(20°C) Input Power[kW]		2.38	4.15	5.69	9.09	10.27	12.35	18.26	20.36	24.71	40.9	48.88
(20°C) COP		4.41	4.55	4.48	4.40	4.38	4.45	4.38	4.42	4.45	4.40	4.50
(7°C) Heating Capacity[kW]	Heating condition A7/6°C W9/55°C	7.56	13.12	17.06	26.89	32.32	37.37	56.1	66.62	78.49	136.95	152.52
(7°C) Input Power[kW]		2.44	4.1	5.25	8.3	10.1	11.5	17	20.5	23.5	41.5	46.5
(7°C) COP		3.1	3.2	3.25	3.24	3.20	3.25	3.30	3.25	3.34	3.30	3.28
(-12°C) Heating Capacity[kW]	Heating condition A-12/-14°C W6/55°C	6.2	10.94	12	19.36	23.27	25.78	38.72	45.6	51.57	91.2	101.91
(-12°C) Input Power[kW]		2.5	4.6	5	8	9.5	10.7	16	19	21.4	38	43
(-12°C) COP		2.48	2.38	2.4	2.42	2.45	2.41	2.42	2.40	2.41	2.40	2.37
Max Current[A]	/	15	12	15	24	28	33	50	56	66	112	132
Working Ambient Temp[°C]	/	-30-43	-30-43	-30-43	-30-43	-30-43	-30-43	-30-43	-30-43	-30-43	-30-43	-30-43
Operating Water Temp[°C]	/	15-55	15-55	15-55	15-55	15-55	15-55	15-55	15-55	15-55	15-55	15-55
Rated Water Flow[m³/h]	/	1.8	3.3	4.4	6.9	7.7	9.5	13.8	15.5	18.9	31.0	37.8
Rated Water Yield[L/H]		215	420	588	850	1000	1100	1700	2000	2200	4000	4400
Refrigerant/Quantity[kg]	/	R410A/2*1	R410A/3.2*1	R410A/3.8*1	R410A/3.2*2	R410A/3.8*2	R410A/4.3*2	R410A/7*2	R410A/8*2	R410A/9*2	R410A/8*4	R410A/9*4
Net Size(LxDxH)[mm]	/	720x720x860	750x750x1060	750x750x1060	1502x806x1130	1502x806x1130	1525x792x1530	1925x860x2000	2000x960x2050	2000x960x2050	2300x1200x2231	2300x1200x2231
Noise Level[dB(A)]	/	<50	<55	<60	<65	<65	<65	<70	<70	<70	<78	<78
Pipe Connection [DN]	/	25	25	25	40	40	40	50	50	50	80	80
Net Weight[kg]	/	122	140	165	275	290	320	550	650	680	1050	1100
