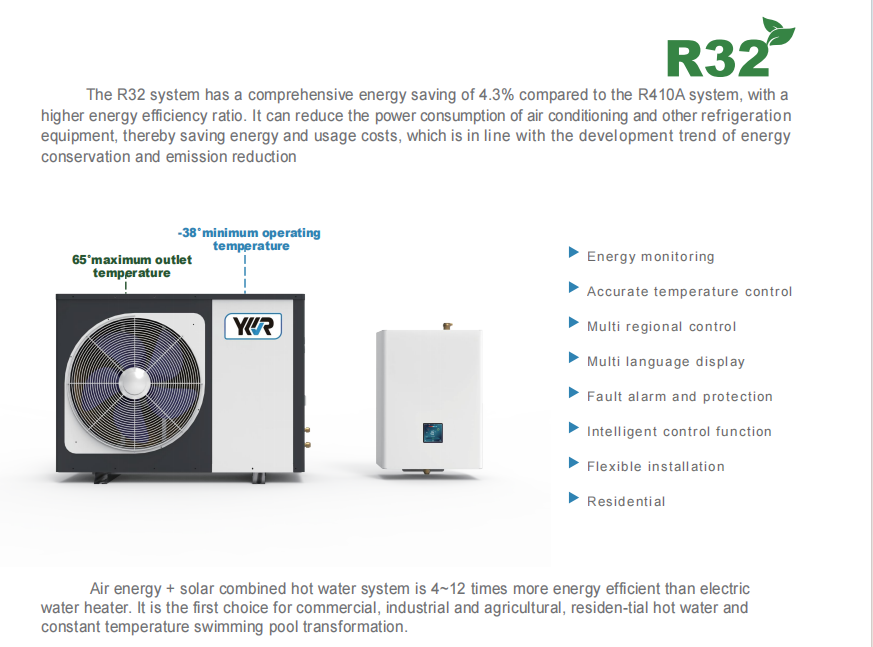

R32 solar split air heat pump
Guangdong Y.K.R New Energy Co., Ltd. is an Air-Source Heat Pump manufacturer specializing in R&D, manufacturing, and sales of all types of heat pump products for Industrial, Commercial, and Residential applications.
- Commodity name： R32 solar split air heat pump
Category：
You can send us an email：doris@ykr-e.com
Inquire Now
Product Details
| Model | YK-03/BPKTR3-F | YK-04/BPKTR3-F | YK-03/BPKTR3-F-S | YK-04/BPKTR3-F-S | ||
| Power Supply | V/Hz/Ph | 220~240/50-60/1 | 220~240/50-60/1 | 380~415/50-60/3N | 380~415/50-60/3N | |
| Heating1 | Max.Heating Capacity | kW | 9.1 | 12 | 9.1 | 12 |
| COP | WW | 4.5 | 4.48 | 4.5 | 4.48 | |
| Heating Capacity Min./Max. | kW | 4.0/9.1 | 5.3/12 | 4.0/9.1 | 5.3/12 | |
| Heating power hput Min./Max. | kW | 0.727/2.02 | 0.97/2.68 | 0.727/2.02 | 0.97/2.68 | |
| COP Mn.Max. | WW | 4.5/5.5 | 4.48/5.46 | 4.5/5.5 | 4.48/5.46 | |
| Heating2 | Max.Heating Capacity | kW | 8.5 | 11.1 | 8.5 | 11.1 |
| COP | W/W | 3.6 | 3.58 | 3.6 | 3.58 | |
| Heating Capacity Min./Max. | kW | 3.8/8.5 | 4.8/11.1 | 3.8/8.5 | 4.8/11.1 | |
| Heating power nput Min./Max. | kW | 0.863/2.36 | 1.1/3.1 | 0.863/2.36 | 1.1/3.1 | |
| COP Min./Max. | W/N | 3.6/4.4 | 3.58/4.35 | 3.6/4.4 | 3.58/4.35 | |
| Max.Cooling Capacity | kW | 8.2 | 10.8 | 8.2 | 10.8 | |
| EER | W | 3.45 | 3.42 | 3.45 | 3.42 | |
| Cooling1 | Cooling Capacity Min.Max. | kW | 3.6/8.2 | 4.6/10.8 | 3.6/8.2 | 4.6/10.8 |
| Cooling Power Input Min./Max. | kW | 0.878/2.38 | 1.135/3.15 | 0.878/2.38 | 1.135/3.15 | |
| EER Min./Max. | WW | 3.45/4.1 | 3.42/4.05 | 3.45/4.1 | 3.42/4.05 | |
| Max.Cooling Capacity | kW | 6.6 | 8.7 | 6.6 | 8.7 | |
| EER | WW | 2.8 | 2.78 | 2.8 | 2.78 | |
| Cooling2 | Cooling Capacity Min.Max. | kW | 3.05/6.6 | 3.92/8.7 | 3.05/6.6 | 3.92/8.7 |
| Cooling Power nput Min./Max. | kW | 0.871/2.35 | 1.12/3.12 | 0.8712.35 | 1.12/3.12 | |
| EER Min./Max. | W | 2.8/3.5 | 2.78/3.48 | 2.8/3.5 | 2.78/3.48 | |
| Rated Current | A | 9 | 11.9 | 3 | 4 | |
| Max Current | A | 14.5 | 19 | 5 | 6.6 | |
| SCOP Level(35°℃) | A+++ | A+++ | A+++ | A+++ | ||
| SCOP Level(55℃) | A++ | A++ | A++ | A++ | ||
| Working Ambient Temperature | ℃ | -38~43 | ||||
| Operating Water Temperature | ℃ | 7~60 | ||||
| Refrigerant | R32 | |||||
| Compressor | Type-Quantity/System | / | Twin Rotary-1 | Twin Rotary-1 | Twin Rotary-1 | Twin Rotary-1 |
| Brand | 1 | Panasonic | ||||
| Four-way Valve Brand | 1 | Hualu | ||||
| Expansion Valve Brand | 1 | Hualu | ||||
| Fan | Quantity | 1 | 1 | 1 | 1 | |
| Airflow | m³/h | 3000 | 3300 | 3000 | 3300 | |
| Rated power | W | 90 | 100 | 90 | 100 | |
| Water Side Heat Exchanger |
Type | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | |
| Water Pressure Drop | kPa | 20 | 23 | 23 | ||
| Piping Connection | inch | G1" | G1" | G1" | G1" | |
| Allowable Water Flow | Min./Rated./Max. | m³/h | 0.95/1.6/1.8 | 1.3/2.12.4 | 0.95/1.6/1.8 | 1.3/2.1/2.4 |
| Water Pump | Type | / | Buil-in DC lhverter Water Pump | |||
| Noise Level | dB(A) | 53 | 54 | 53 | 54 | |
| Outdoor Unit Size(LxDxH) | mm | 1125×430×824 | 1125×430×824 | 1125×430×824 | 1125×430×824 | |
| Outdoor Packing Size(LxDxH) | mm | 1130×440×960 | 1130×440×960 | 1130×440×960 | 1130×440×960 | |
| Indoor Unit Size(LxDxH) | mm | 655×450×220 | 655×450×220 | 655×450×220 | 655×450×220 | |
| lndoor Packing Size(LxDxH) | mm | 661×460×255 | 661×460×255 | 661×460×255 | 661×460×255 | |
| Outdoor unit Weight | kg | 75 | 75 | 77 | 77 | |
| Outdoor Gross Weight | kg | 84 | 84 | 86 | 86 | |
| Indoor Net Weight | kg | 30 | 30 | 30 | 30 | |
| Indoor Gross Weight | kg | 33 | 33 | 33 | 33 | |

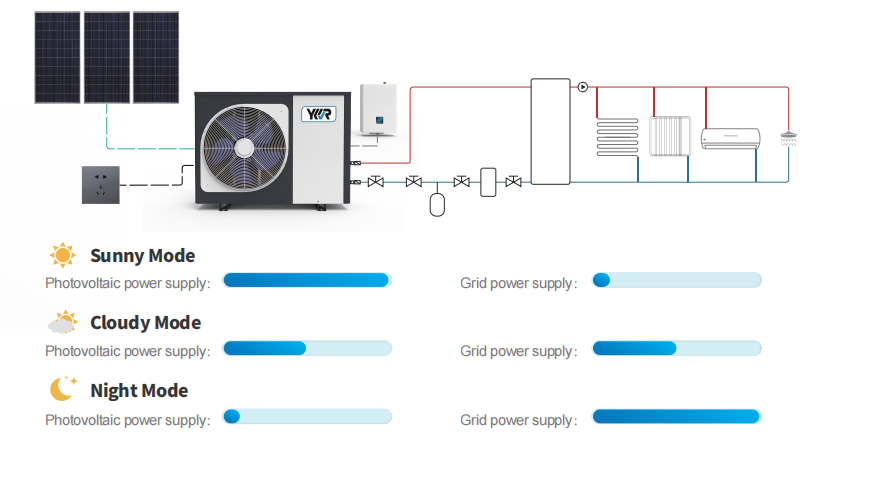

| Solar Panels Qty | Pcs | 4 | 5 | 4 | 5 | |
| Model | YK-05/BPKTR3-F | YK-06/BPKTR3-F | YK-05/BPKTR3-F-S | YK-06/BPKTR3-F-S | ||
| Power Supply | V/Hz/Ph | 220~240/50-60/1 | 220~240/50-60/1 | 380~415/50-60/3N | 380~415/50-60/3N | |
| Max.Heating Capacity | kW | 16 | 18.6 | 16 | 18.6 | |
| COP | WW | 4.51 | 4.47 | 4.51 | 4.47 | |
| Heating1 | Heating Capacity Min.Max. | kW | 7.6/16 | 8.2/18.6 | 7.6/16 | 8.2/18.6 |
| Heating power nput Min./Max. | kW | 1.31/3.55 | 1.5/4.16 | 1.31/3.55 | 1.5/4.16 | |
| COP Min.Max. | W | 4.51/5.8 | 4.47/5.45 | 4.51/5.8 | 4.47/5.45 | |
| Max.Heating Capacity | kW | 15.5 | 17.3 | 15.5 | 17.3 | |
| COP | W | 3.8 | 3.56 | 3.8 | 3.56 | |
| Heating2 | Heating Capacity Min.Max. | kW | 7.3/15.5 | 7.6/17.3 | 7.3/15.5 | 7.6/17.3 |
| Heating power nput Min.Max. | kW | 1.49/4.08 | 1.75/4.85 | 1.49/4.08 | 1.75/4.85 | |
| COP Min.Max. | W | 3.8/4.9 | 3.57/4.34 | 3.8/4.9 | 3.57/4.34 | |
| Max.Cooling Capacity | kW | 14.5 | 16.7 | 14.5 | 16.7 | |
| EER | W | 3.55 | 3.42 | 3.55 | 3.42 | |
| Cooling1 | Cooling Capacity Min.Max. | kW | 6.8/14.5 | 7.2/16.7 | 6.8/14.5 | 7.2/16.7 |
| Cooling Power Input Min./Max. | kW | 1.62/4.08 | 1.7714.88 | 1.62/4.08 | 1.7714.88 | |
| EER Min./Max. | W | 3.55/4.19 | 3.42/4.06 | 3.55/4.19 | 3.42/4.06 | |
| Max.Cooling Capacity | kW | 10.9 | 13.5 | 10.9 | 13.5 | |
| EER | WW | 2.79 | 2.78 | 2.79 | 2.78 | |
| Cooling2 | Cooling Capacity Min.Max. | kW | 5.9/11.9 | 6.1/13.5 | 5.9/11.9 | 6.1/13.5 |
| Cooling Power Input Min./Max. | kW | 1.64/4.12 | 1.76/4.85 | 1.64/4.12 | 1.76/4.85 | |
| EER Mn./Max. | WW | 2.89/3.6 | 2.78/3.46 | 2.89/3.6 | 2.78/3.46 | |
| Rated Current | A | 15.5 | 18.5 | 6.1 | 6.2 | |
| Max Current | A | 25 | 30 | 9.5 | 10 | |
| SCOP Level (35°℃) | A+++ | A+++ | A+++ | A+++ | ||
| SCOP Level (55℃) | A++ | A++ | A++ | A++ | ||
| Working Ambient Temperature | ℃ | -38~43 | ||||
| Operating Water Temperature | ℃ | 7~60 | ||||
| Refrigerant | R32 | |||||
| Compressor | Type-Quantity/System | / | Twin Rotary-1 | Twin Rotary-1 | Twin Rotary-1 | Twin Rotary-1 |
| Brand | / | Panasonic | ||||
| Four-way Valve Brand | / | Hualu | ||||
| Expansion Valve Brand | / | Hualu | ||||
| Fan | Quantity | 2 | 2 | 2 | 2 | |
| Airflow | m³/h | 6000 | 6500 | 6000 | 6500 | |
| Rated power | W | 180 | 200 | 180 | 200 | |
| Water Side Heat Exchanger |
Type | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | |
| Water Pressure Drop | kPa | 25 | 28 | 25 | 28 | |
| Piping Connection | inch | G1" | G1" | G1" | G1" | |
| Allowable Water Flow | Min./Rated./Max. | m³/h | 1.5/2.75/3.0 | 1.9/3.2/3.9 | 1.5/2.75/3.0 | 1.9/3.2/3.9 |
| Water Pump | Type | / | Built-in DC Inverter Water Pump | |||
| Noise Level | dB(A) | 56 | 57 | 56 | 57 | |
| Outdoor Unit Size(LxDxH) | mm | 1137×445×1350 | 1137×445×1350 | 1137×445×1350 | 1137×445×1350 | |
| Outdoor Packing Size(LxDxH) | mm | 1140×450×1390 | 1140×450×1390 | 1140×450×1390 | 1140×450×1390 | |
| Indoor Unit Size(LxDxH) | mm | 655×450×220 | 655×450×220 | 655×450×220 | 655×450×220 | |
| Indoor Packing Size(LxDxH) | mm | 661×460×255 | 661×460×255 | 661×460×255 | 661×460×255 | |
| Outdoor unit Weight | kg | 117 | 126 | 117 | 126 | |
| Outdoor Gross Weight | kg | 128 | 137 | 128 | 137 | |
| Indoor Net Weight | kg | 33 | 34 | 33 | 34 | |
| Indoor Gross Weight | kg | 36 | 37 | 36 | 37 | |
| Solar Panels Qty | Pcs | 7 | 7 | 7 | 8 | |
Guangdong Y.K.R New Energy Co., Ltd. is an Air-Source Heat Pump manufacturer specializing in R&D, manufacturing, and sales of all types of heat pump products for Industrial, Commercial, and Residential applications.
Since 2008,Y.K.R keeps focus on heat pumps development until now owning 5 large-scale heat pump production lines spread across 20,000m2 workshop, with an annually production capacity more than 2800 sets. Our company currently employs 150+ seasoned production workers, 18+ senior technical engineers, and we obtained 80+ product patents.
As our slogan states , " For green energy and a comfortable life ,"Y.K.R has been focusing on continuous technological innovation to improve the quality of products and services and is committed to providing customers with high-quality air source products and the best green energy solutions.
