R32 monobloc system air heat pump for heating cooling and hot water
Guangdong Y.K.R New Energy Co., Ltd. is an Air-Source Heat Pump manufacturer specializing in R&D, manufacturing, and sales of all types of heat pump products for Industrial, Commercial, and Residential applications.
- Commodity name： R32 monobloc system air heat pump for heating cooling and hot water
Category：
You can send us an email：doris@ykr-e.com
Inquire Now
Product Details
- Products Detail
- Description
-
- Commodity name: R32 monobloc system air heat pump for heating cooling and hot water
Model YK-03/BPKTR3 YK-04/BPKTR3 YK-03/BPKTR3-S YK-04/BPKTR3-S YK-05/BPKTR3 Power Supply VHz/Ph 220-240/50-60/1 220-240/50-60/1 380-415/50-60/3N 380-415/50-60/3N 220-240/50-60/1 Heating1 Max.Heating Capacity kW 9.1 12 9.1 12 16 COP WM 4.5 4.48 4.5 4.48 4.51 Heating Capacity Min./Max KW 4.0/9.1 5.3/12 4.0/9.1 5.3/12 7.6/16 Heating power Input
Min./MaxkW 0.72712.02 0.97/2.68 0.727/2.02 0.97/2.68 1.31/3.55 COP Min./Max. WM 4.5/5.5 4.48/5.46 4.5/5.5 4.48/5.46 4.51/5.8 Heating2 Max.Heating Capacity kW 8.5 11.1 8.5 11.1 15.5 COP W 3.6 3.58 3.6 3.58 3.8 Heating Capacity Min.Max. kW 3.8/8.5 4.8/11.1 3.8/8.5 4.8/11.1 7.3/15.5 Heating power Input
Min./Max.kW 0.863/2.36 1.1/3.1 0.863/2.36 1.1/3.1 1.49/4.08 COP Min./Max. WN 3.6/4.4 3.58/4.35 3.6/4.4 3.58/4.35 3.8/4.9 Cooling1 Max.Cooling Capacity KW 8.2 10.8 8.2 10.8 14.5 EER WM 3.45 3.42 3.45 3.42 3.55 Cooling Capacity Min.Max. kW 3.6/8.2 4.6/10.8 3.6/8.2 4.6/10.8 6.8/14.5 Cooling Power Input
Min/Max.kW 0.878/2.38 1.135/3.15 0.878/2.38 1.135/3.15 1.62/4.08 EER Min.Max. W 3.45/4.1 3.42/4.05 3.45/4.1 3.42/4.05 3.55/4.19 Cooling2 Max.Cooling Capacity KW 6.6 8.7 6.6 8.7 10.9 EER WN 2.8 2.78 2.8 2.78 2.79 Cooling Capacity Min./Max kW 3.05/6.6 3.92/8.7 3.05/6.6 3.92/8.7 5.9/11.9 Cooling Power Input
Min./Max.kW 0.871/2.35 1.12/3.12 0.871/2.35 1.12/3.12 1.64/4.12 EER Min.Max. WN 2.8/3.5 2.78/3.48 2.8/3.5 2.78/3.48 2.89/3.6 Rated Current A 9 11.9 3 4 15.5 Max Current A 14.5 19 5 6.6 25 SCOP Level (35℃) A+++ A+++ A+++ A+++ A+++ SCOP Level(55℃) A++ A++ A++ A++ A++ Working Ambient Temperature ℃ -38~43 Operating Water Temperature ℃ 7~60 Refrigerant R32 Compressor Type-Quantity/System Twin Rotary-1 Twin Rotary-1 Twin Rotary-1 Twin Rotary-1 Twin Rotary-1 Fan Quantity 1 1 1 1 2 Airflow m³/h 3000 3300 3000 3300 6000 Rated power W 90 100 90 100 180 Water Side
Heat ExchangerType Plate Heat
ExchangerPlate Heat
ExchangerPlate Heat
ExchangerPlate Heat
ExchangerPlate Heat
ExchangerWater Pressure Drop kPa 20 23 20 23 25 Piping Connection inch G1" G1" G1" G1" G1" Allowable Water
Flow
Min./Rated./Max. m³/h 0.95/1.6/1.8 1.3/2.1/2.4 0.95/1.6/1.8 1.3/2.1/2.4 1.5/2.75/3.0 Noise Level dB(A) 53 54 53 54 56 NetSize(LxDxH) mm 1085×430×824 1085×430×824 1085×430×824 1085×430×824 1104×445×1350 Packing Size(LxDxH) mm 1130×440×960 1130×440×960 1130×440×960 1130×440×960 1140×450×1490 Net Weight kg 85 85 87 87 132 Gross Weight kg 94 94 96 96 143 Loading Quantity(20GP/40HQ) 44/96 44/96 44/96 44/96 22/48 Model YK-06/BPKTR3 YK-05/BPKTR3-S YK-06/BPKTR3-S YK-08/BPKTR3-S YK-10/BPKTR3-S Power Supply V/Hz/Ph 220-240/50-60/1 380-415/50-60/3N 380-415/50-60/3N 380-415/3N~150 380-415/50-60/3N Heating1 Max.Heating Capacity kW 18.6 16 18.6 24 30 COP WIW 4.47 4.51 4.47 4.48 4.46 Heating Capacity Min.Max kW 8.2/18.6 7.6/16 8.2/18.6 10.56/24 13.2/30 Heating power Input KW 1.5/4.16 1.31/3.55 1.5/4.16 1.93/5.36 2.42/6.73 Min/Max.
COP Min.Max.W/W 4.47/5.45 4.51/5.8 4.47/5.45 4.48/5.46 4.46/5.45 Heating2 Max.Heating Capacity KW 17.3 15.5 17.3 22.3 27.8 COP W/W 3.56 3.8 3.56 3.58 3.57 Heating Capacity Min.Max kW 7.6/17.3 7.3/15.5 7.6/17.3 9.8/22.3 12.2/27.8 Heating power Input
Min/Max.kW 1.75/4.85 1.49/4.08 1.75/4.85 2.25/6.23 2.81/7.78 COP Min./Max. WW 3.5714.34 3.8/4.9 3.5714.34 3.58/4.35 3.5714.34 Cooling1 Max.Cooling Capacity kW 16.7 14.5 16.7 21.5 26.8 EER WIW 3.42 3.55 3.42 3.43 3.42 Cooling Capacity Min.Max kW 7.2/16.7 6.8/14.5 7.2/16.7 9.4/21.5 11.8/26.8 Cooling Power Input
Min/MaxkW 1.7714.88 1.62/4.08 1.7714.88 2.32/6.26 2.91/7.83 EER Min.Max. W/ 3.42/4.06 3.55/4.19 3.42/4.06 3.43/4.05 3.42/4.05 Cooling2
Max.Cooling CapacitykW 13.5 10.9 13.5 17.5 21.7 EER W/W 2.78 2.79 2.78 2.79 2.78 Cooling Capacity Min.Max KW 6.1/13.5 5.9/11.9 6.1/13.5 7.8/17.4 9.6/21.7 Cooling Power Input
Min/Max.kW 1.76/4.85 1.64/4.12 1.76/4.85 2.24/6.24 2.78/7.80
EER Min./Max.WIW 2.78/3.46 2.89/3.6 2.78/3.46 2.79/3.48 2.78/3.45 Rated Current A 18.5 6.1 6.2 7.8 9.8 Max Current A 30 9.5 10 12.5 15.7 SCOP Level (35℃) A+++ A+++ A+++ A+++ A+++ SCOP Level(55℃) A++ A++ A++ A++ A++ Working Ambient Temperature ℃ -38~43 Operating Water Temperature ℃ 7~60 Refrigerant R32 Compressor Type-Quantity/System Twin Rotary-1 Twin Rotary -1 Twin Rotary-1 Twin Rotary-1 Twin Rotary-1 Fan Quantity 2 2 2 2 2
Airflowm³/h 6500 6000 6500 9000 11000 Rated power W 200 180 200 260 300 Water Side
Heat ExchangerType Plate Heat
ExchangerPlate Heat
ExchangerPlate Heat
ExchangerPlate Heat
ExchangerPlate Heat
ExchangerWater Pressure Drop kPa 28 25 28 30 32 Piping Connection inch G1" G1" G1" G1-1/4" G1-1/4" Allowable Water
FlowMin./Rated./Max. m³/h 1.9/3.2/3.9 1.5/2.75/3.0 1.9/3.2/3.9 2.9/4.2/5.0 3.6/5.2/6.3 Noise Level dB(A) 57 56 57 58 59 Net Size(LxDxH) mm 1104×445×1350 1104×445×1350 1104×445×1350 1308×470×1460 1308×470×1460 Packing Size(LxDxH) mm 1140×450×1490 1140×450×1490 1140×450×1490 1350×495×1600 1350×495×1600 Net Weight kg 137 132 137 161 167 Gross Weight kg 148 143 148 177 183 Loading Quantity(20GP/40HQ) 22/48 22/48 22/48 19/41 19/41 -

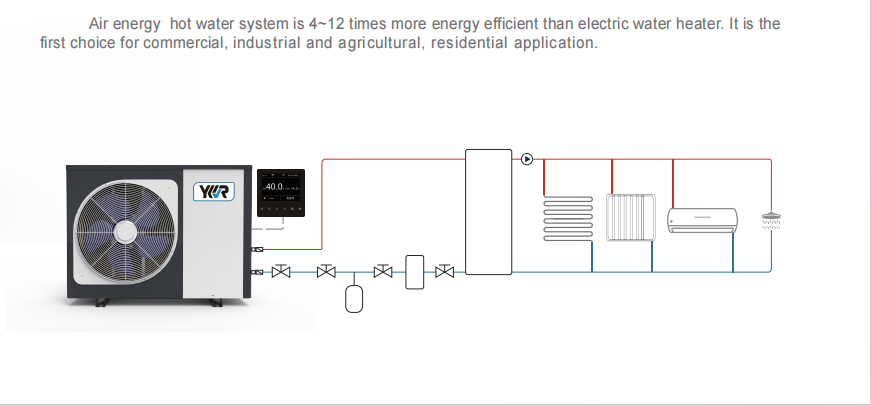

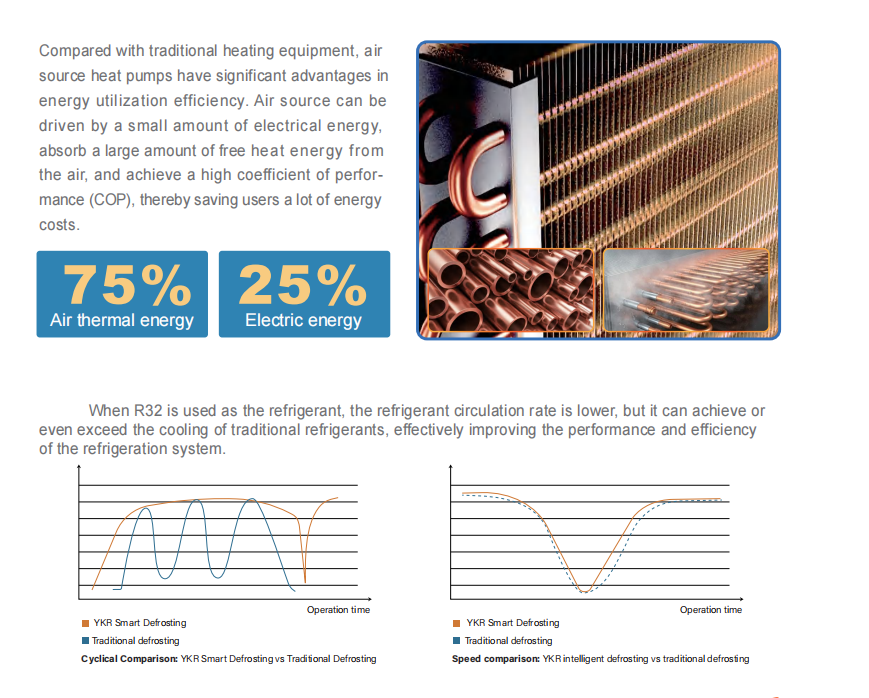

Why choose YKR heat pump ?Compared with traditional heating equipment, air source heat pumps have significant advantages in energy utilization efficiency. Air source can be driven by a small amount of electrical energy, absorb a large amount of free heat energy from the air, and achieve a high coefficient of performance (COP), thereby saving users a lot of energy costs.When R32 is used as the refrigerant, the refrigerant circulation rate is lower, but it can achieve or even exceed the cooling of traditional refrigerants, effectively improving the performance and efficiency of the refrigeration system.R32 refrigerant EVI monobloc air source heat pump, for residential radiator / underfloor heating cooling and domestic hot water.
YKR R32 heat pumps has so many advantages, we promise to provide you with the best and most optimal heat pump .
R32 DC Inverter Monoblok heat pump.
*-38℃ ultra-low temp. stable heating.
Equipped with Panasonic's EVI technology, Automatic adaptive defrost system: Like a home butler, it helps you clear evaporator frost.
*Super quiet operation.
Double-layer sound-absorbing cotton composite technology
YKR HVAC is dedicated to establishing extremely quiet operation conditions for our customer.
*5G/2.4G Compatible WIFI Module.
Support mobile phone remote operation.Remote temperature control via huilian APP+Cloud hosting. Meeting the needs of remote operations.
*R32 eco- friendly refrigerant.
YKR HVAC has developed a series of R32 air source heat pump products that integrate heating, cooling, and domestic hot water, featuring low-carbon emissions and high efficiency and energy conservation.Energy consumption is lower than industry standards.Save more electricity and money.
*A+++ high energy efficiency
Compared with similar models, YKR air heat pump is not only a representative of A+++ energy efficiency class.Compared with similar models, YKR air heat pump is not only a representative of A+++ energy efficiency class.
Compared with similar models, YKR air heat pump is not only a representative of A+++ energy efficiency class.A high COP value ensures excellent heating or cooling performance, meeting users' requirements for product performance while also balancing efficient operation and energy-saving needs.
*Various safety protections.
Triple pressure protection + overload protection + four-way valve protection
*All in one function unit.
With heating, cooling and domestic hot water functions
*Diverse functions of control panel.
High-end configuration, optimal performance.Technology is no longer just numbers on a parameter table
High-end configuration, optimal performance
YKR HVAC * R32 full DC inverter monoblok heat pump
